THE SIMPLICITY

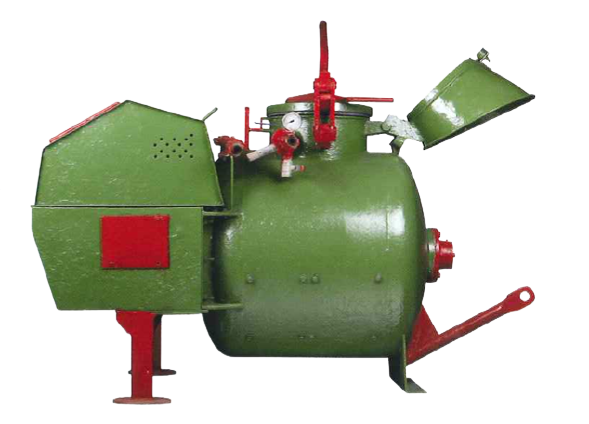

The material is loaded manually into the vessel. The material is mixed by a mixing shaft which is built into the vessel. After the material have been thoroughly mixed, the lid of the vessel is closed by an eccentric lever and further secured by the closing of the release valve. By opening main valve, pressurised air is introduced into the vessel via the vessel valve which the forces the material out from the vessel. Simultaneously via the injection valve and air stream at the exit of the vessel creates in the conveying hose an air cushion which forces the material in a pressurised flow via the conveying hose to the place of work

Machine functionalities:

1. Basic version without loading bucket.

2. The mixing vessel is 12mm thick

3. To be connected to an air compressor of 2.800 l/min at 7 bar

4. Three-phase electric motor of 7.5hp

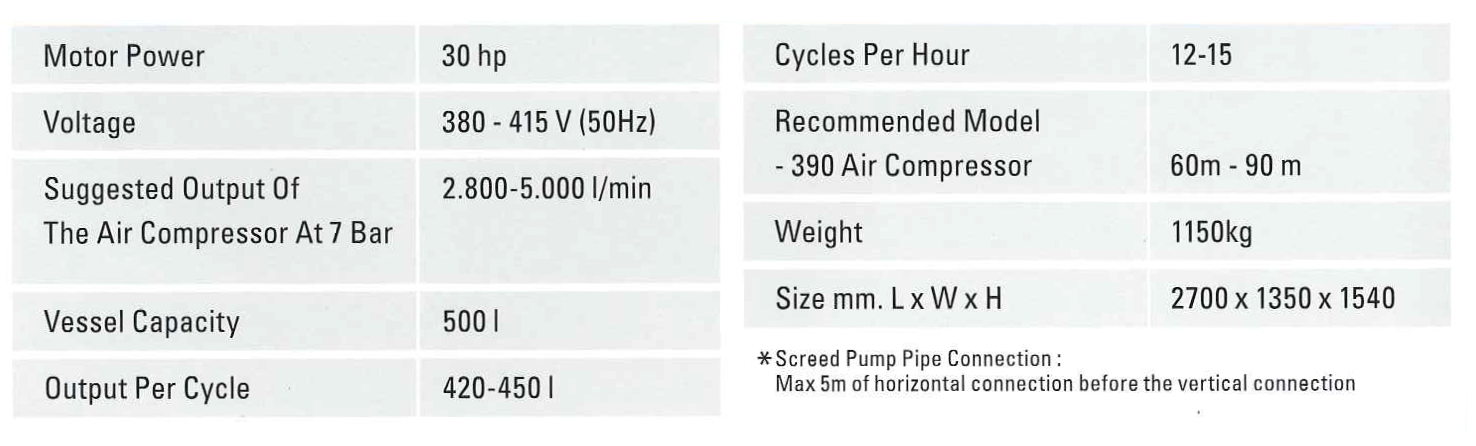

Technical Features

THE SIMPLICITY

Electric series is amongst the most economical machine in the market. It is suitable to those building contractors who already possessed of air compressor. It merges the studies of the components to the typical simplicity and versatility of the machines. This is a mixing and conveying unit for dry material or for mixtures such as screed, sand and conglomerates of any type up to maximum size aggregate of 20mm. It requires the addition of an air compressor with an output of 2.800 l/min at 7 bar.

Machine functionalities:

1. Basic version without loading bucket

2. The mixing vessel is 12mm thick

3. The vessel has a useful capacity of 500 litres and a low filing height

4. To be connected to an air compressor of 2.800 l/min at 7 bar

5. Output from 3 to 6.5m3/h

6. Three-phase electric motor of 25-30 hp

Technical Features

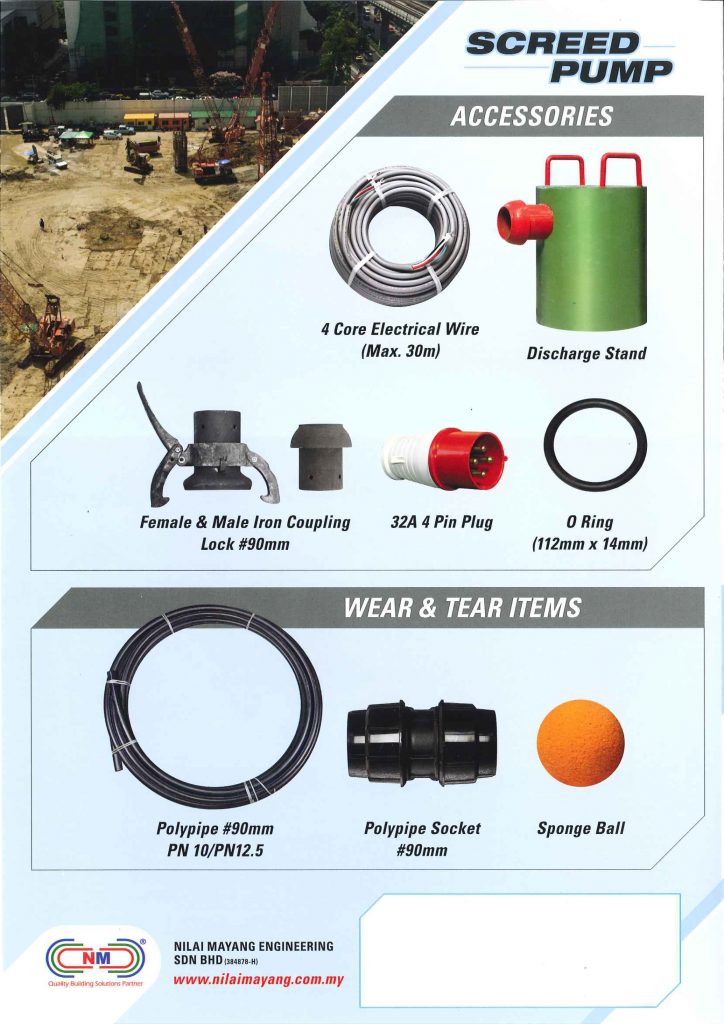

Accessories

The Most Economical Machine Screed pump
